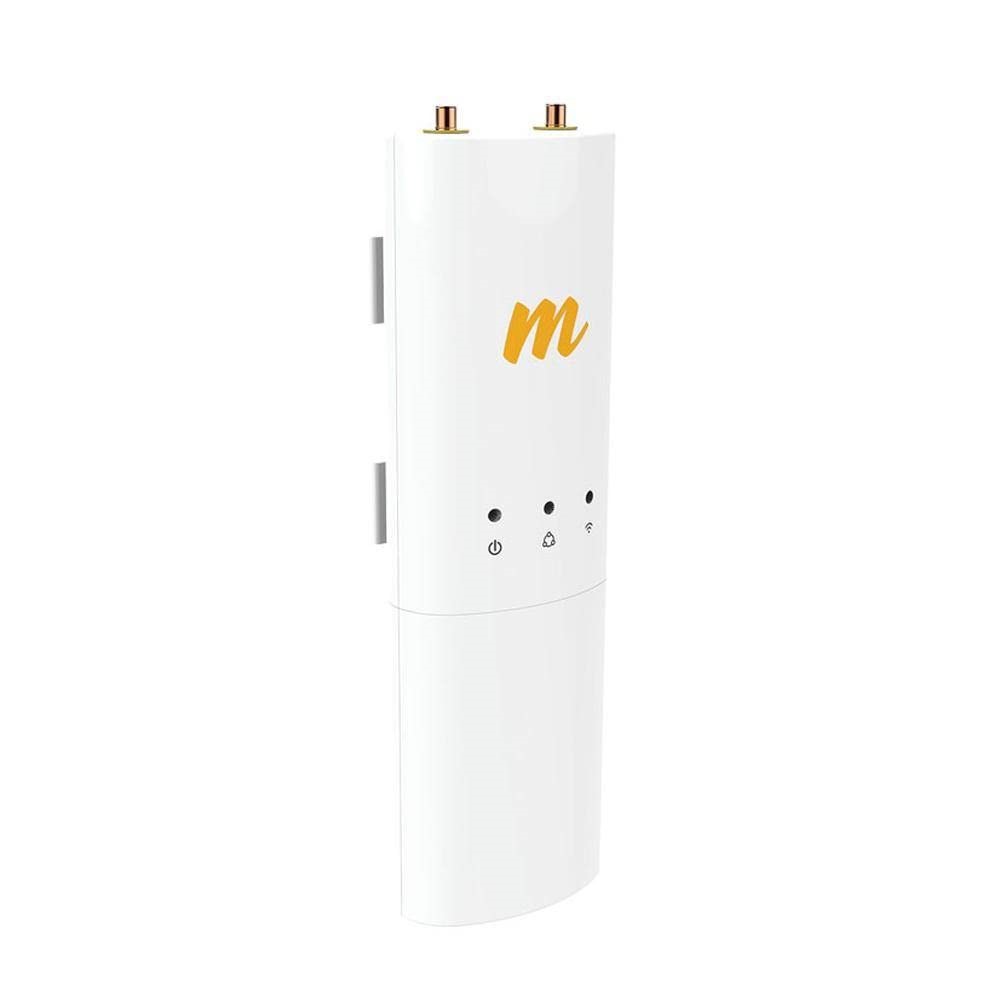

Description

Technical Specifications:-

Performance:

• Max Throughput: PTP/PTMP: 700 Mbps IP (866 Mbps PHY)
• Wireless Protocols:

WiFi Interop

Mimosa SRS

• Modes:

PTMP Client

PTP Backhau

Radio

• MIMO and Modulation: 2×2:2 MIMO OFDM up to 256-QAM
• Bandwidth**: 20/40/80 MHz channels tunable to 5 MHz increments for Mimosa SRS; Tunable to standard WiFi channels for WiFi Interop
• Frequency Range:

PTMP: 4900–6400 MHz*

PTP: 4900–6400 MHz

Restricted by country of operation ‘new’ US/FCC 5600-5650 MHz support

Max Output Power: 27 dBm

• Sensitivity (MCS0):

-87 dBm @ 80 MHz

-90 dBm @ 40 MHz

-93 dBm @ 20 MHz

Power

• Max Power Consumption: 12.9 W
• System Power Method: Passive PoE (24-56VDC)
• PoE Power Supply: Passive PoE compliant, 48-56 V Power over Ethernet supply (included)

Physical

• Dimensions:

Depth: 44.0 mm (1.73”)

Width: 65 mm (2.56”)

Height: 188.4 mm (7.42”)

• Weight: 295 gr (10.4 ounces)
• Mounting: Single pole strap
• Connector Type: (2) RP-SMA (female)

Environmental

• Operating Temperature: -40°C to +55°C (-40°F to 131°F)
• Operating Humidity: 5 to 100% condensing
• Outdoor Ingress Protection Rating: IP55
• Operating Altitude: 4,420 m (14,501’) maximum
• Shock and Vibration: ETS 300-019-2-4 class 4M5

Features

• Gigabit Ethernet: 10/100/1000-BASE-T
• Management Services: Mimosa cloud monitoring and management SNMPv2 & Syslog legacy monitoring HTTPS HTML5 based web UI
• Smart Spectrum Management: Active scan monitors/logs ongoing RF interference across channels with no service impact; Dynamic auto-optimization of channel and bandwidth use
• Security: WPA2 PSK & Enterprise 802.1x; Radius provisioning, COA, DM (from A5); 128-bit AES with hardware acceleration
• VLANs: Per subscriber VLAN; Q-in-Q, triple tagging; Management VLAN

• QoS: Supports 4 pre-configured QoS levels
