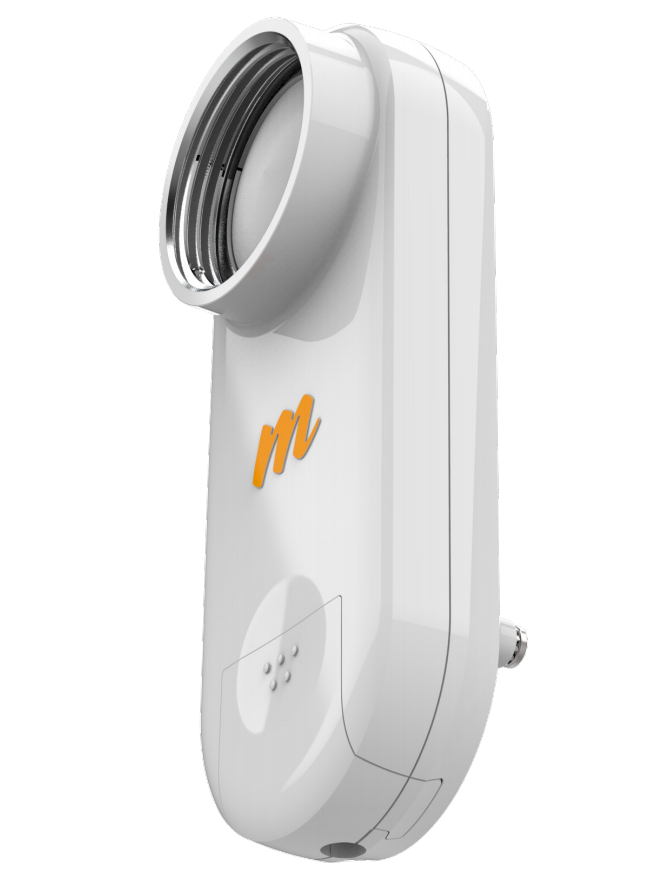

Description
Key Features
- Four Twist-On, Flexible Antenna Options
- PTP or PTMP Modes
- Extended Frequency 4.9–6.4 GHz
- Best-in-Class Noise Immunity
- Ultra Rugged, IP67
- Low-Power Consumption
- Ultra Reliable
Technical Specifications
Performance
- Max Throughput: PTP/PTMP: 700 Mbps IP (866 PHY)
- Wireless Protocols: Mimosa SRS (GPS Sync); WiFi Interop
- Modes: PTP Backhaul; PTMP Client
Radio
- MIMO and Modulation: 2×2:2 MIMO OFDM, up to 256 QAM
- Bandwidth: 20/40/80 MHz channels, tunable to 5 MHz increments for Mimosa SRS and WiFi Interop mode
- Frequency Range: PTP/PTMP: 4900–6400 MHz (restricted by country of operation)
- Max Output Power: 27 dBm
- Sensitivity (MCS0):
-87 dBm @ 80 MHz
-90 dBm @ 40 MHz
-93 dBm @ 20 MHz
Power
- Max Power Consumption: 9.2 W average; 12.9 W max
- System Power Method: Passive POE (24-56 VDC)
- PoE Power Supply: Passive POE compliant, 24-56 V Power over Ethernet supply (not included)
Physical
- Dimensions: Height:
175 mm (6.89”)
Width: 70 mm (2.75”)
Depth: 61 mm (2.40”)
- Weight: 0.37 kg (0.82 lbs) • RF Connector Type: Mimosa N5-X twist-on
- Enclosure Characteristics: Outdoor, die-cast aluminum, UV stabilized paint
- Mounting: Dual attached pole mount straps
- Grounding: Ground lug • Wind Survivability: 200 km/h (125 mph)
Environmental
- Outdoor Ingress Protection Rating: IP67
- Operating Temperature: -40°C to +55°C (-40°F to 131°F)
- Operating Humidity: 5 to 100% condensing
- Operating Altitude: 4,420 m (14,500’) max
- Shock & Vibration: ETS 300-019-2-4 class 4M5
Features
- Gigabit Ethernet: 10/100/1000-Base-T
- Management Services: Mimosa cloud monitoring and management; SNMPv2 & Syslog monitoring; HTTPS; HTML5-based web UI
- Smart Spectrum Management: Active scan monitors/logs ongoing RF interference across channels with no service impact; Dynamic auto-optimization of channel and bandwidth use
- Security: WPA2 PSK and Enterprise 802.1x, Radius provisioning, COA, DM (from A5); 128-bit AES with hardware acceleration
- VLANs: Per subscriber, VLAN, Q-in-Q, triple tagging, management VLAN
• QoS: Supports 4 pre-configured QoS levels
