Specifications

Dimensions     :    358 x 271.95 x 272.5 mm (14.09 x 10.71 x 10.73″)

Weight   :

Without Mount      800 g (1.76 lb)

With Mount      980 g (2.16 lb)

Power Supply     :     24V, 0.3A Gigabit PoE Adapter (Included)

Max. Power Consumption    :     7W

Power Method    :    Passive PoE (Pairs 4, 5+; 7, 8 Return)

Supported Voltage Range    :    24V ± 10%

Gain     :   23 dBi

Networking Interface    :     (1) 10/100/1000 Ethernet Port

Processor Specs    :    MIPS 74Kc

Memory    :    64 MB DDR2

LEDs     :   Power, Ethernet

Channel Sizes   :

PtP Mode                            10/20/30/40/50/60/80 MHz

PtMP Mode                        10/20/30/40 MHz

Enclosure Characteristics    :   Reflector (SGCC 0.6T) / Plastic: PC

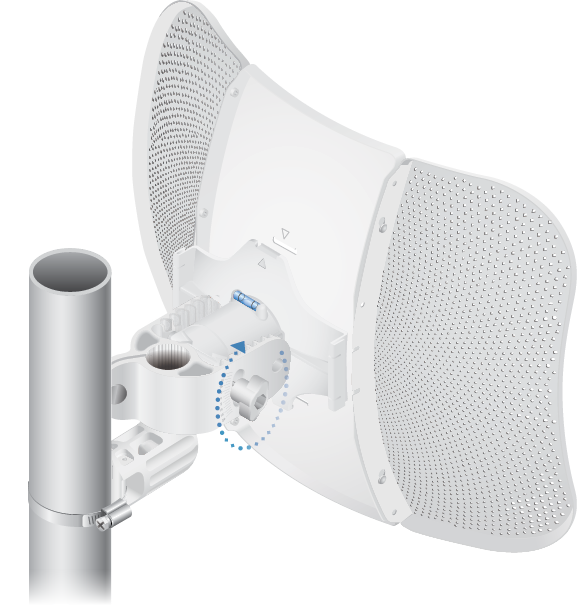

Mounting    :    Pole-Mounting Kit (Included)
